2300 Tilt Care Bed

Product Code: 7-23T

The Alrick 2300 Tilt Care Bed is the most versatile hi-low and tilt bed available for the healthcare industry. Its robust frame supports up to 300kg SWL, accommodating users with diverse weight requirements.

Available in sizes ranging from Single to King Double width, this bed is equally suitable for both in-home and facility care settings, combining aesthetic appeal with practicality for users and carers alike.

    • Australian Made and Owned

    • Vertical Lift

    • Electric Backrest

    • Electric Kneebreak

    • Manual Vascular Support

    • 300kg SWL

    • Pull Out Extension

    • Back Lit Handset

    • Forward and Reverse Trendelenberg

    • Chair Position

    • 125mm Braking and Directional Castors

    • Bluetooth Connectivity
      *handset must be ordered separately*

    • Under Bed Light

    • Curved Natural Oak Endboards

    • APO Grey and Ironstone Powdercoat Frame

    • WARRANTY:
      Frame - 10 years, Electrics - 5 years & Castors - 1 year

    • Bluetooth Handset

    • Central Locking Castors

    • CPR Backrest

    • Attendant Control

    • Battery Backup

    • Electric Vascular Support

    • USB Charging Ports

    • Custom Powdercoat Colours

    • Custom Sleeping Surface Length (2m+)

    • Custom Endboard Styles

    • Horizontal Bed Rails (7002HR)

    • Padded Cotside Protectors (7-COTPRO-G)

    • Clamp On Support Rail (7-CLP-400-APO)

    • Self Help Pole (7-ASHP/H)

    • Bariatric Self Help Pole (7-ASHP-B)

    • Reading Light (7-ABSL)

    • IV Pole (7-AIVP)

    • StandEzy Straight Handle Bed Pole (7-SE-SH)

    • StandEzy Hook Handle Bed Pole (7-SE-HH)

    • Combo Grab Handle (7-CGH)

    • UPS Emergency Bed Power Unit (7-UPS-EBPU)

    • 200mm Foam Bolster (7-BLR)

    • T-Bar Buffer (7-TBR4000)

    • Mattresses

Bedroom with single bed on wheels, wooden headboard and footboard, modern wall art, wooden side table, potted plant, and wooden flooring.

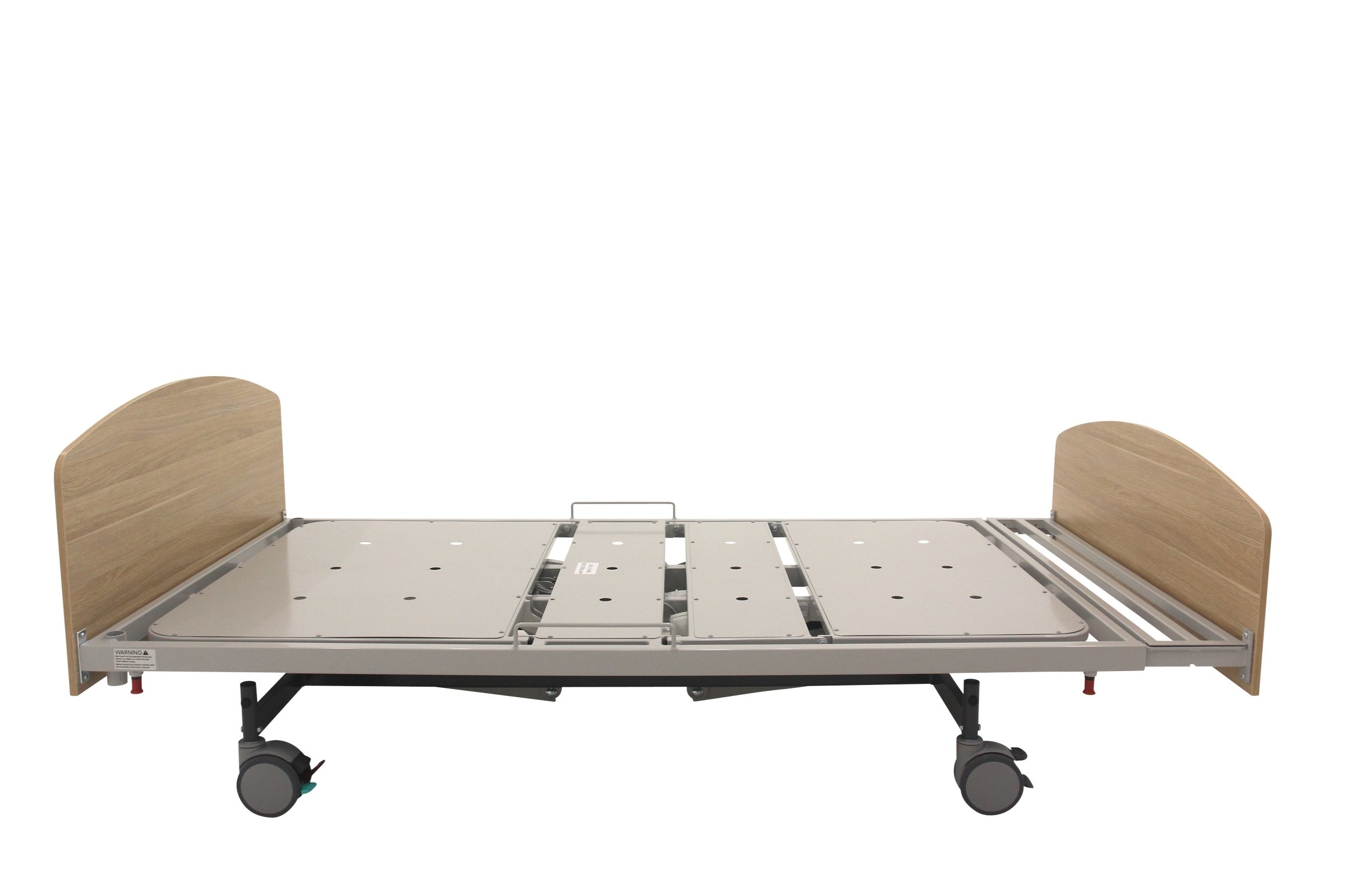

Adjustable hospital bed frame on wheels with wooden headboard and footboard.

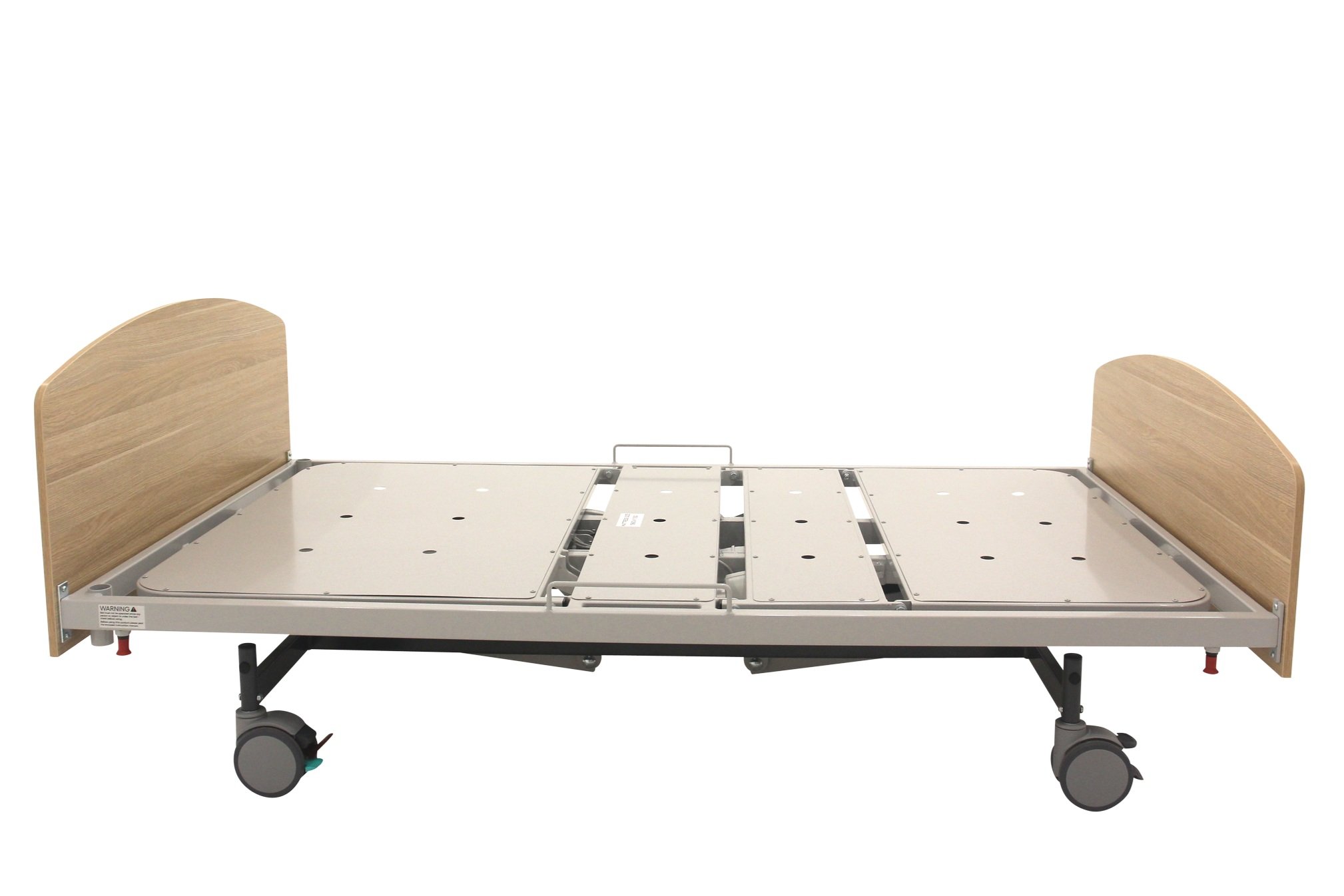

Adjustable hospital bed with wooden headboard and footboard
Adjustable hospital bed with wooden head and footboards.
hospital bed frame with wooden headboard and wheels

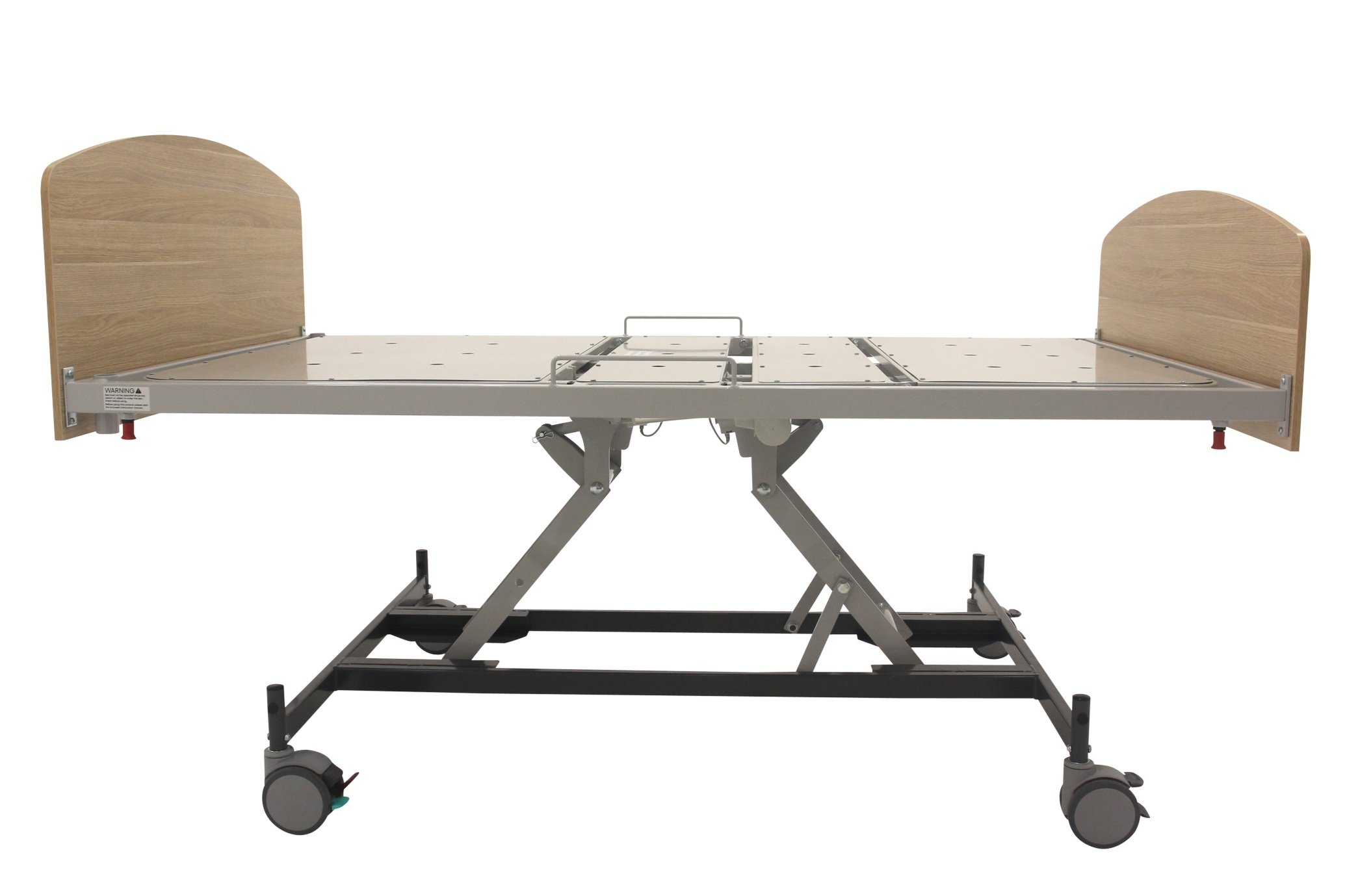

Adjustable hospital bed frame with wooden headboard and footboard, featuring caster wheels and a metal support structure.
adjustable hospital bed with wooden head and foot panels

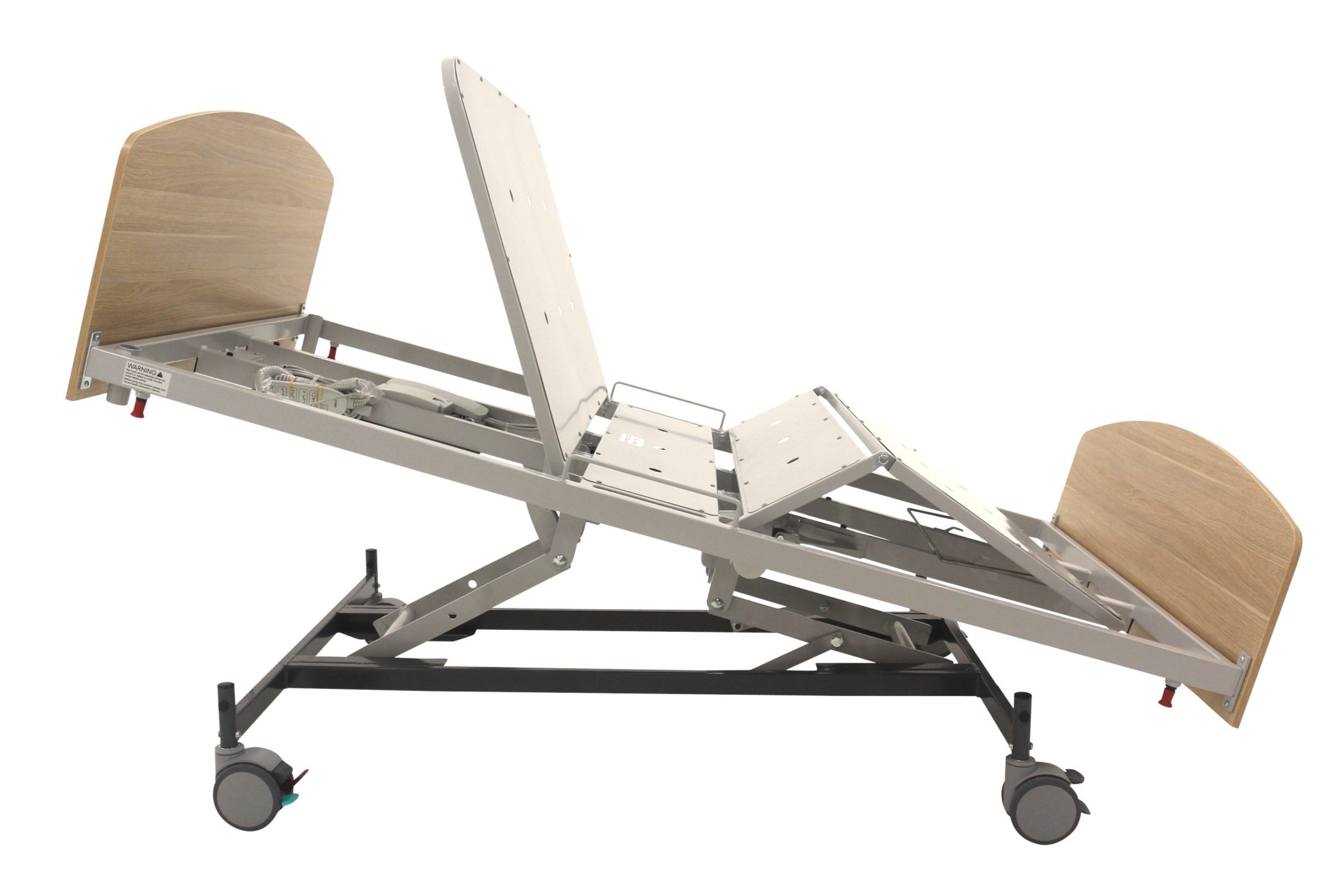

Adjustable hospital bed on wheels with tilting feature

Stocked Endboards Colours & Styles

Custom Endboard, styles and colours also available.

two wooden bed headboards stacked
Light wood texture with natural grain pattern

Natural Oak - Laminate Slender Arch Headboard & Square Footboard

Gray and blue fabric headboards
Close-up of gray textured fabric
Blue textured fabric pattern

Ash - Upholstered - Jersey Headboard & Plain Footboard

Ocean - Upholstered - Jersey Headboard & Plain Footboard

Three different colored composite decking panels displayed side by side.
close-up of dark brown wood texture with vertical grain pattern
Light brown wooden texture with natural grain and pattern.
wood texture background with natural grain patterns

Burnt Walnut - Timber Eltham Endboards

Beech - Timber Eltham Endboards

Saddle - Timber Eltham Endboards

Specifications

EN9 Floorline Single King Single Extra Wide Double Queen Double King Double
Overall dimensions (mm) 2040 x 920 2040 x 1090 2040 x 1220 2040 x 1390 2040 x 1520 2040 x 1820
Sleeping Surface (mm) 2000 x 900 2000 x 1070 2000 x 1200 2000 x 1370 2000 x 1500 2000 x 1800
SWL (kg) 300 300 300 300 300 300
Low/High Position (mm) 360/800 360/800 360/800 360/800 360/800 360/800
Underbed Clearance 135 135 135 135 135 135
Back Angle (Degrees) 77 77 77 77 77 77
Knee Angle 40 40 40 40 40 40
Reserve Angle 16 16 16 16 16 16
Trendelenburg Angle 16 16 16 16 16 16
