Who does Alrick design beds and equipment for?

Aged care, homecare and clinical environments where dignity, safety and comfort matter — from single users at home to facility-wide fit-outs.

How do I choose the right bed size and configuration?

Start with the user’s mobility profile, care needs (positioning, rails, accessories), room size and SWL requirements. If in doubt, share your use case and we’ll recommend a configuration.

What does SWL (Safe Working Load) actually mean?

SWL is the maximum combined load the bed is designed to support (user + mattress + accessories). Choose a bed with SWL comfortably above your expected combined load.

Do you offer custom options (finishes, widths, electrics)?

Yes — many models support custom endboards/finishes, powdercoat colours, handset/control options, and extended sleeping surfaces. Send your requirements and we’ll confirm feasibility.

What lead times should I expect?

Lead times depend on model, options and quantity. We’ll confirm ETA in your quote, and flag any items with extended build time.

Can you assist with delivery and installation?

Yes — we can coordinate delivery and, where requested, on-site installation/commissioning. Please advise access details (lifts, stairs, parking, floor level).

What warranty applies to Alrick beds?

Warranties vary by component category. Your quote and product manual list coverage and terms for the frame, electrics and other components.

How do I book service, repairs or spare parts?

Contact us with the model and serial number plus a brief issue description. We’ll confirm parts availability and schedule a technician if needed.

Which accessories are available?

Rails and side protection, self-help and IV poles, reading lights, UPS emergency power, grab handles, extension kits and compatible mattresses. Availability varies by model.

What safety standards and compliance do your beds follow?

Products are designed to meet relevant medical bed and electrical safety standards. See each model’s manual/spec sheet for the exact compliance details.

Do you offer trials, demos or site assessments?

Yes — depending on location and model. Share your timeframe, care needs and room constraints; we’ll advise demo or assessment options.

How do I request a quote?

Use the enquiry form or contact us with model, size, options, quantity and delivery address. If you’re unsure, outline your care scenario and we’ll recommend a configuration and quote.

What is the 2300 Tilt Companion Bed and who is it for?

The 2300 Tilt Companion is a companion unit designed to accompany a primary 2300 bed, sharing synchronized height but offering independent posture control.

Does the Companion Bed synchronize height with the primary bed?

Yes — the hi-low adjustment is synchronized between the main and companion units so both move together.

What independent adjustments can the companion side perform?

The companion unit has its own electric backrest and kneebreak to allow the secondary user to adjust independently.

What sizes are available or compatible?

Companion bed widths are typically matched to the primary bed’s width (e.g. Double or Queen).

What standard features come with the 2300 Tilt Companion?

Features include synchronized vertical lift, electric backrest & kneebreak, manual vascular support, curved endboards, powdercoated frame, Bluetooth (optional), under-bed lighting and braking castors.

What warranties apply?

Typical: 10 years frame, 5 years electrics, 1 year on castors, battery & accessories.

What options and add-ons are available?

Options include central locking castors, battery backup, CPR backrest, USB ports, custom powdercoats, custom endboards, dual locking castors, extended sleeping surfaces etc.

What accessories are compatible?

Compatible with 2300 accessories: rails, padded protectors, IV poles, self-help poles, reading lights, UPS, foam bolsters, T-bar buffers, clamp rails, and mattresses.

Is the 2300 Tilt Companion Bed Australian made?

Yes — like the rest of the 2300 series, it is Australian Made and Owned.

How do I request a quote, demo or custom build?

Use the page enquiry, or contact Alrick via email/phone with your matching width, preferred features, and custom requirements for a quote.

2300 Tilt Companion Bed | Maximise Care Flexibility

2300 Tilt Companion Bed

Product Code: 7-23COM

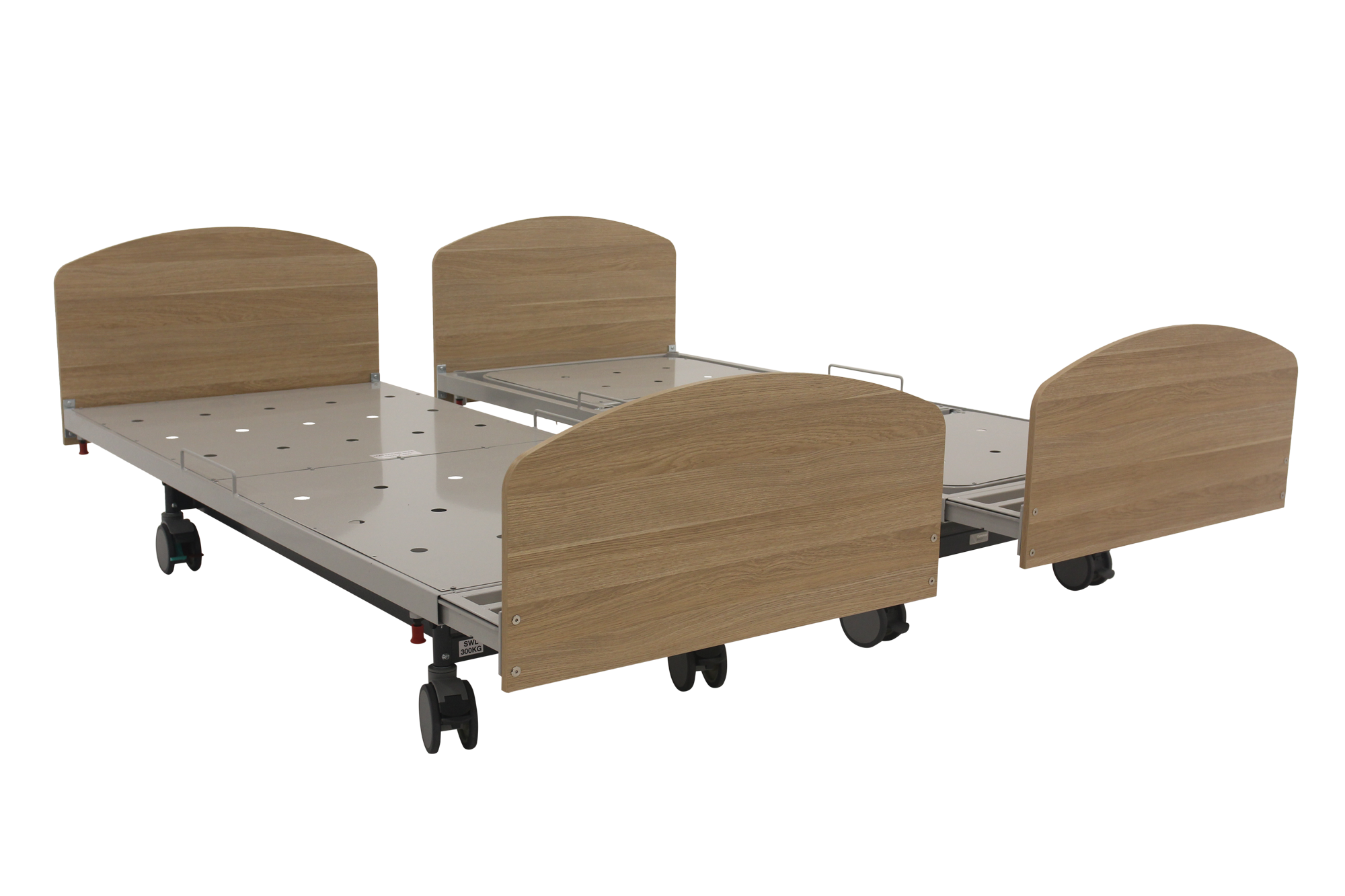

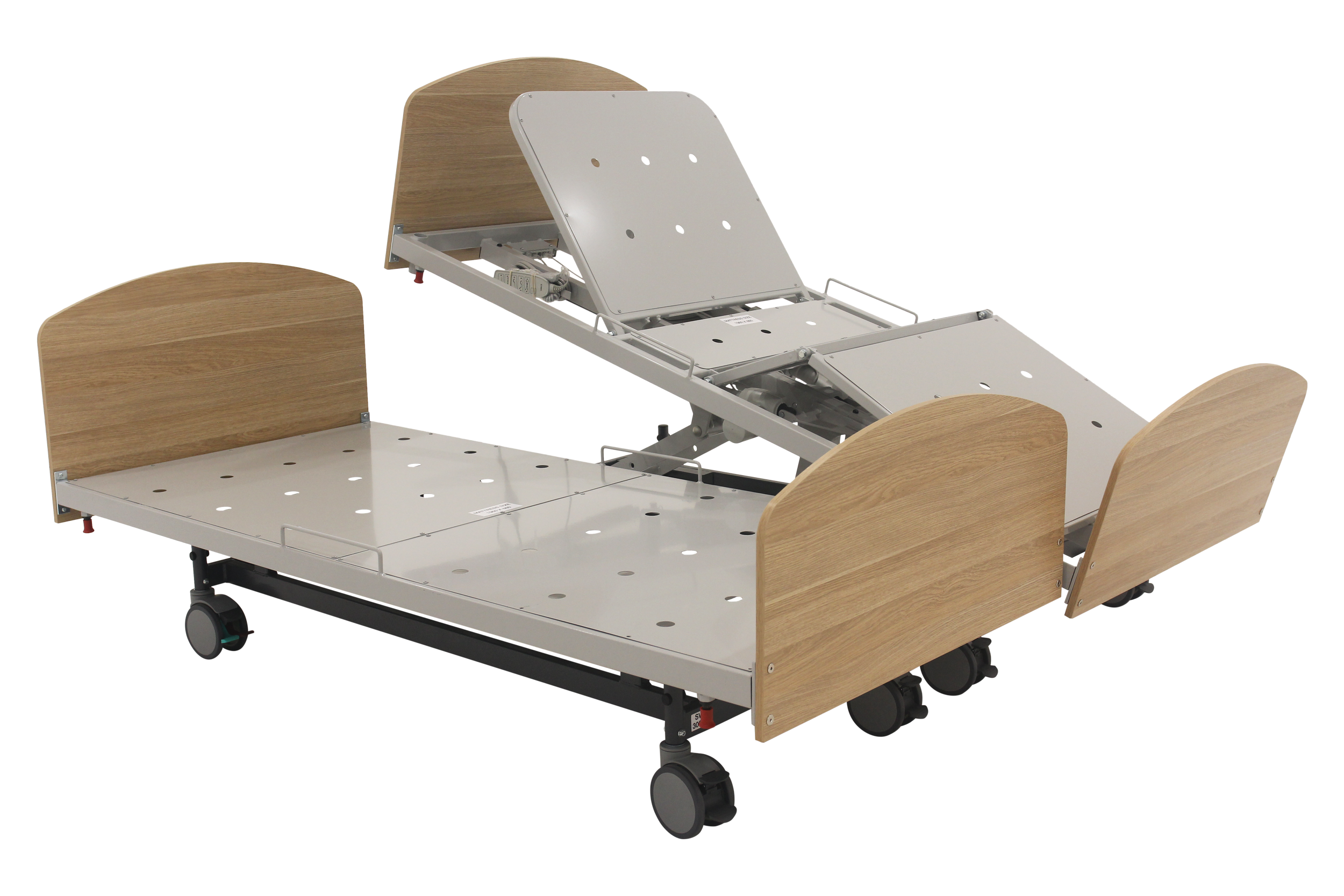

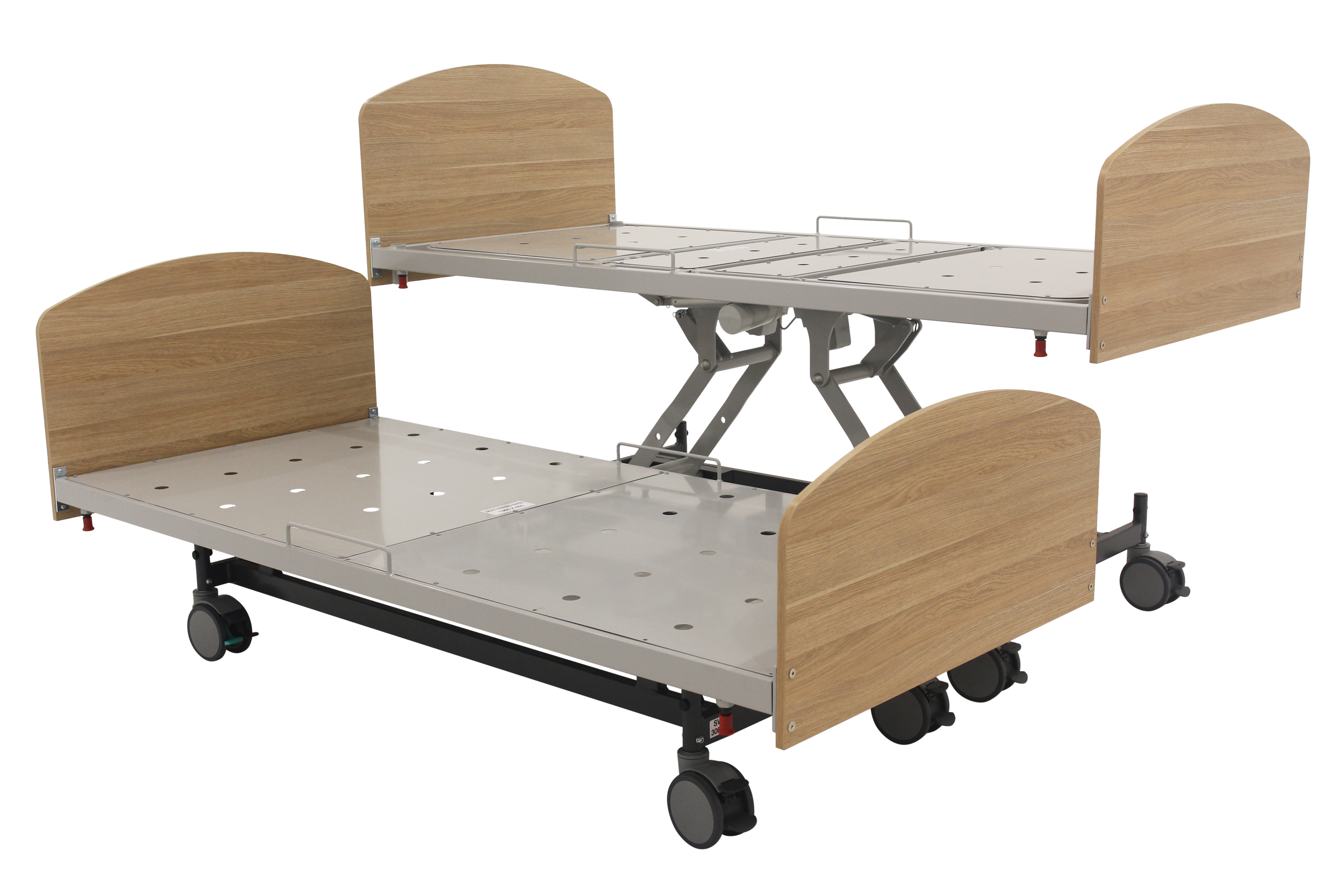

The Alrick 2300 Tilt Companion Bed provides comfort and convenience for users and caregivers alike, designed to meet their needs effectively. This innovative design incorporates two independent bed frames, maximising flexibility and enhancing care outcomes.

Users have the option to choose electric operation for both sides or a static frame on one side, depending on care needs. The beds are connected by joining bars, allowing them to be used together or separated effortlessly as required.

Enquire Today

- Australian Made and Owned
- Vertical Lift
- Electric Backrest
- Electric Kneebreak
- Manual Vascular Support
- 1 x Electric Bed & 1 x Fixed Height Bed
- Beds can be easily separated
- 300kg SWL each side
- Pull Out Extension (both beds)
- Back Lit Handset
- Forward and Reverse Trendelenberg
- Chair Position
- 125mm Braking and Directional Castors
- Bluetooth Connectivity
  *handset must be ordered separately*
- Underbed Light
- Curved Natural Oak Endboards
- APO Grey and Ironstone Powdercoated Frame
- WARRANTY: Frame - 10 years, Electrics - 5 years, Castors - 1 year, Battery - 1 year
- 2x Electric Beds
- Electric Vascular Support
- Battery Backup
- USB Charging Ports
- Bluetooth Handset
- Central Locking Castors
- CPR Backrest
- Padded York Surround
- Custom Powdercoat Colours
- Custom Endboard Styles and Colours
- Custom Length Sleeping Surface (1.5m+)
- Horizontal Bed Rails (7002HR)
- Padded Cotside Protectors (7-COTPRO-G)
- Clamp On Support Rail (7-CLP-400-APO)
- Self Help Pole (7-ASHP/H)
- Bariatric Self Help Pole (7-ASHP-B)
- Reading Light (7-ABSL)
- IV Pole (7-AIVP)
- StandEzy Straight Handle Bed Pole (7-SE-SH)
- StandEzy Hook Handle Bed Pole (7-SE-HH)
- Combo Grab Handle (7-CGH)
- UPS Emergency Bed Power Unit (7-UPS-EBPU)
- 200mm Foam Bolster (7-BLR)
- T-Bar Buffer (7-TBR4000)
- Mattresses

Product Brochure

Script Form

User Manual

Adjustable hospital beds in a bright room with wall art and large windows.

hospital bed with wooden headboards and caster wheels

Adjustable hospital bed frame with wooden headboard and footboard on wheels.

Adjustable hospital bed frame with wooden panels and wheels.

Adjustable hospital bed frame with wood paneling and wheels.

Adjustable hospital bed frame with wooden side panels and wheels.

Stocked Endboards Colours & Styles

Custom Endboard, styles and colours also available.

Close-up of light brown wood grain texture with vertical lines and natural patterns.

Natural Oak - Laminate Slender Arch Headboard & Square Footboard

Two tufted fabric headboards, one gray and one blue, side by side.

Ash - Upholstered - Jersey Headboard & Plain Footboard

Ocean - Upholstered - Jersey Headboard & Plain Footboard

Specifications


       2300 Tilt Companion Bed

      King Double
            King Double

      Type
      Electric Bed & Fixed Height Bed
          Two Electric Beds

      Overall dimensions (mm)
       2040 x 1820
      2040 x 1820

      Sleeping Surface (mm)
      2000 x 900
            2000 x 900

      Individual dimensions (mm)
      2040 x 920
      2040 x 920

      Mattress size (mm)
      1960 x 870 (each)
      1960 x 870 (each)

      SWL (kg)
      300
      300

      Low/High Position (mm)
      360/800
      360/800

      Mattress base height (mm)
      400 (fixed height only)
      -

      Back Angle (Degrees)
      77 (electric only)
      77

      Knee Angle
      40 (electric only)
      40

      Reserve Angle
      16 (electric only)
      16

      Trendelenburg Angle
      16 (electric only)
      16
